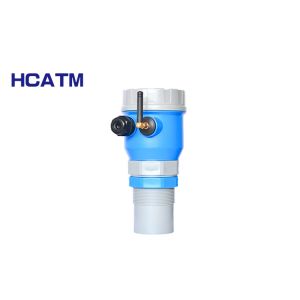

GML601-A Universal Ultrasonic Level Transmitter
Product Overview
GML601-A universal ultrasonic level transmitter is a set of talents, drawing on the advantages of a variety of domestic and foreign level meters. A universal level meter that realizes all-digital and humanized design concepts, has perfect level measurement and control, data transmission and human-machine communication functions. This product adopts modular circuit design, military-quality multilayer PCB board, compact hardware structure and reasonable layout. This product supports isolated 4-20mA output, built-in GPRS, RF, LORA, Bluetooth, Wifi to realize wireless data transmission such as the Internet of Things, supports MiniSD card data acquisition or USB storage, and can add modules to achieve other functions according to customer needs.
Product Feature
1. Wide voltage range, can work in DC voltage of 12-28V
2.Backup and restore settings function
3. Capable of measuring multiple physical quantities
4.Adjustable analog output function
5. With full-scale start and end settings
6. With value-added / difference distance selection, both distance and level can be measured
7. With built-in GPRS, RF, LORA, Bluetooth, Wifi to achieve the Internet of Things
8.OLED Chinese and English menu with self-luminous
9. Can manually set the fixed interference filtering function
10. Can measure level, liquid level, volume, weight, etc.
11.Adjustable analog output
12. With digital filtering and echo recognition function
13. Support custom sound velocity (special substance measurement)
14. Support custom serial data format
15. Support custom math function operations
16. Support three or four wire system
Product Parameter
| Model | GML601-A |
| Range | 2m, 5m, 8m, 10m, 12m, 15m, 20m, 25m, 30m, 35m, 40m (selected when ordering) |
| Blind zone | <0.25- 2m (different depending on the range) |
| Display resolution | 1mm (minimum) |
| Frequency | 20 KHz to 2000 KHz |
| Precision | ±0.25% F.S |
| Temperature compensation | Automatic temperature compensation |
| Display | LED, LCD, OLED Chinese and English menu with self-illumination (optional) |
| Output | Analog output signal: 0 ~ 20mA; 4 ~ 20mA load > 300Ω; 0 ~ 5V; 0 ~ 10V |
| RS-485 (supports Modbus) |
| Built-in GPRS wireless communication optional SMS data prompt (acquisition system can be customized) |
| Two-way NPN/relay (AC: 5A 250V DC: 10A 24V) |
| Power supply | DC12～28V or AC220V |
| Power consumption | <1.5W |
| Dimensions | Φ74mm×132mm ×G1 1/2 (2m range) |
| Φ92mm×198mm×M60 (5m-15m range) |
| Φ92mm×270mm×DN80 non-standard flange (20m-40m range) |
| Installation interface | G1 1/2 pipe thread or Φ50mm round hole with large ring (2m range) |
| M60×2 or Φ61mm round hole with large ring (5m-15m range) |
| DN80 non-standard flange (20m-40m range) |
| Shell material | ABS engineering plastic, nylon |
| Electrical Interface | M20X1.5 |
| Protection level | IP65 (can be customized for a higher degree of protection) |
| Explosion-proof grade | EXiaIIBT4Gb (selected when ordering) |
| Working environment | Temperature and pressure |
| Storage humidity | ≤80%RH without condensation |
| Remarks | Installation methods, materials, accuracy requirements, blind spots and other parameters can be customized according to different customer needs |
